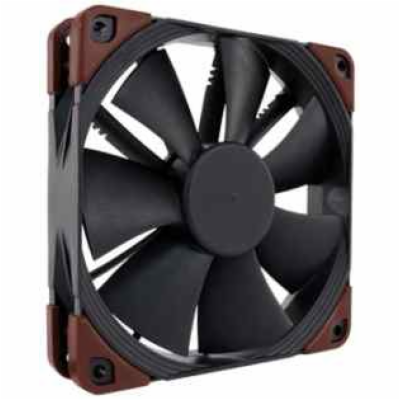

Noctua ventilátor NF-F12 industrialPPC - 3000 PWM, 4-pin, 3000 RPM, 43.5dB, 12V - 120mm
Noctua ventilátor NF-F12 industrialPPC - 3000 PWM, 4-pin, 3000 RPM, 43.5dB, 12V - 120mm
828 Kč
684 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: NF-F12 iPPC-3000PWM
Kód produktu: 9087913
Výrobce: Noctua
Váha: 0,05 kg
Záruka: 23 měsíců
Popis produktu
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability
Size: 120x120x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: Heptaperf™
Frame Technology: FocusedFlow™
Rotational Speed (+/- 10%): 3000 RPM
Min. Rotational Speed (PWM, +/-20%): 750 RPM
Airflow: 186,7 m^(3)/h
Acoustical Noise: 43,5 dB(A)
Static Pressure: 7,63 mm H2O
Max. Input Power: 3,6 W
Max. Input Current: 0,3 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
Ingress Protection: IP52
Material: Fibre-glass reinforced polyamide
Motor type: Three-phase
Stránky výrobce:
http://www.noctua.at
Stránky o produktu:
www.noctua.at
Popis produktu
Noctua NF-F12 Industrial PPC-3000 PWM, 4-pinConceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability
Size: 120x120x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: Heptaperf™
Frame Technology: FocusedFlow™
Rotational Speed (+/- 10%): 3000 RPM
Min. Rotational Speed (PWM, +/-20%): 750 RPM
Airflow: 186,7 m^(3)/h
Acoustical Noise: 43,5 dB(A)
Static Pressure: 7,63 mm H2O
Max. Input Power: 3,6 W
Max. Input Current: 0,3 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
Fan
4 Fan Screws
Ingress Protection: IP52
Material: Fibre-glass reinforced polyamide
Motor type: Three-phase
Stránky výrobce:
http://www.noctua.at
Stránky o produktu:
www.noctua.at
