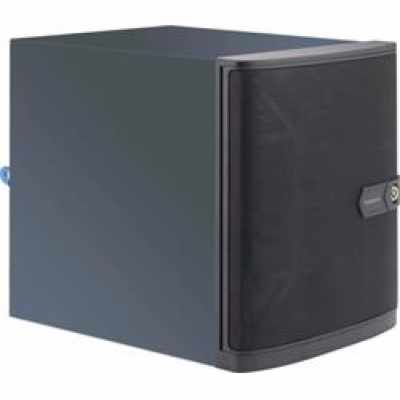

SUPERMICRO Mini-Tower 4x 3,5" HS SATA HDD + 2x Internal 2,5" SATA HDD,1x LP slot, 350W
SUPERMICRO Mini-Tower 4x 3,5" HS SATA HDD + 2x Internal 2,5" SATA HDD,1x LP slot, 350W
7258 Kč
5998 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-721TQ-350B2
Kód produktu: 22135246
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Compact Mini-Tower: D 11"x W 8.27"x H 9.45"
Support wide range of Mini-ITX (6.75"x 6.75") motherboards
4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay
2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported
1 low-profile expansion slot for add-on cards
350W 80 PLUS Gold-certified High-efficiency power supply
Product SKUs
SuperChassis 721TQ-350B2
Form Factor
Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"
Dimensions
Height
9.45" (240.03 mm)
Width
8.27" (210.06 mm)
Depth
11" (279.4 mm)
Gross Weight
15 lbs (6.8 kg)
Net Weight
13.5 lbs (6.12 kg)
Packaging (W x H x L)
12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color
Black
Expansion Slots
1x Low-profile expansion slot(s)
Drive Bays
2x 2.5" fixed drive bay
4x 3.5" hot-swap SAS/SATA drive bay
Backplane
4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives
1x slim DVD-ROM drive bay
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
1 Network activity LEDs
Fan Fail/System Over Heat LED
Port
2x USB 3.0 Port(s)
Systems Cooling
Fans
1x 12cm rear exhaust fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Power Supply
350W 1U multi-output power supply
Total Output Power and Input
350W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
150 x 81.5 x 40.5 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0.05A
+12V
Max: 28A / Min: 0.1A (100Vac - 240Vac)
+5V
Max: 15A / Min: 0.2A
+3.3V
Max: 10A / Min: 0.1A
+5Vsb
Max: 2A / Min: 0.05A
Certification
Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
FCC class B
TUV/CB
UL/CB
Popis produktu
Key FeaturesCompact Mini-Tower: D 11"x W 8.27"x H 9.45"
Support wide range of Mini-ITX (6.75"x 6.75") motherboards
4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay
2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported
1 low-profile expansion slot for add-on cards
350W 80 PLUS Gold-certified High-efficiency power supply
Product SKUs
SuperChassis 721TQ-350B2
Form Factor
Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"
Dimensions
Height
9.45" (240.03 mm)
Width
8.27" (210.06 mm)
Depth
11" (279.4 mm)
Gross Weight
15 lbs (6.8 kg)
Net Weight
13.5 lbs (6.12 kg)
Packaging (W x H x L)
12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color
Black
Expansion Slots
1x Low-profile expansion slot(s)
Drive Bays
2x 2.5" fixed drive bay
4x 3.5" hot-swap SAS/SATA drive bay
Backplane
4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives
1x slim DVD-ROM drive bay
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
1 Network activity LEDs
Fan Fail/System Over Heat LED
Port
2x USB 3.0 Port(s)
Systems Cooling
Fans
1x 12cm rear exhaust fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Power Supply
350W 1U multi-output power supply
Total Output Power and Input
350W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
150 x 81.5 x 40.5 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0.05A
+12V
Max: 28A / Min: 0.1A (100Vac - 240Vac)
+5V
Max: 15A / Min: 0.2A
+3.3V
Max: 10A / Min: 0.1A
+5Vsb
Max: 2A / Min: 0.05A
Certification
Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
FCC class B
TUV/CB
UL/CB
