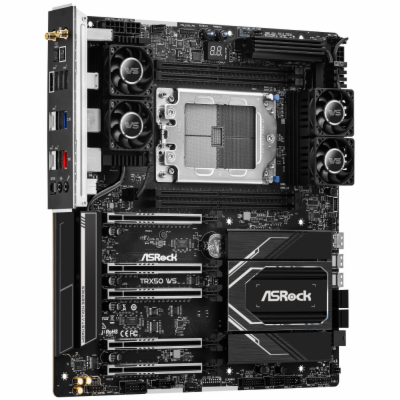

ASRock MB Sc sTRX5 TRX50 WS, AMD TRX50, 4xDDR5, E-ATX
ASRock MB Sc sTRX5 TRX50 WS, AMD TRX50, 4xDDR5, E-ATX
15269 Kč
12619 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: TRX50 WS
Kód produktu: 24734141
Výrobce: ASRock
Váha: 1,5 kg
Záruka: 36 měsíců
Popis produktu
Popis produktu
ASRock TRX50 WS Dependable and Versatile Workstations Motherboard. Designed to deliver powerful performance, manageability and reliability for high speed computing workstations. Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors 18+3+3 Power Phase Design, 110A SPS for VCore Supports 4 DIMMs DDR5 ECC Registered memory 3 PCIe 5.0 x16, 2 PCIe 4.0 x16 Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio Unique Features Superb Productivity - PCIe Gen5 (Graphics, M.2) - Quad Channel DDR5 Rock-Solid Durability - Ultra Low-Loss PCB - 18+3+3 Power Phase, 110A SPS for VCore - Pre-Installed I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer CPU - Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors - Supports AMD Socket sTR5 - Supports ASRock Hyper BCLK Engine Chipset - AMD TRX50 Memory - Quad Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) - Max. capacity of system memory: 1TB BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Graphics - n/a Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio LAN 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless LAN - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO Slots CPU: - 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15µ Gold Contact in VGA PCIe Slots Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* - 1 x MCIO PCIe Gen5x4 Connector - 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* - 4 x SATA3 6.0 Gb/s Connectors - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* USB CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 4 x USB 2.0 (Front) Internal I/O - 2 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 2 x Addressable LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 3 pin ATX Power Connector***** - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* - 1 x Front Panel Audio Connector (15µ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED Rear Panel I/O - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash Accessories - 1 x User Manual - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 2 x Thermistor Cables - 1 x Multi PSU Adaptor Cable - 2 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets OS - Microsoft Windows 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) Form Factor - EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm - 12 Layer PCB - 2oz Copper PCBPřes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany. Kontaktovat výrobce můžete na obchod@mader.cz, nebo na adrese: MADER s.r.o., 1 Máje 14, Liberec.
