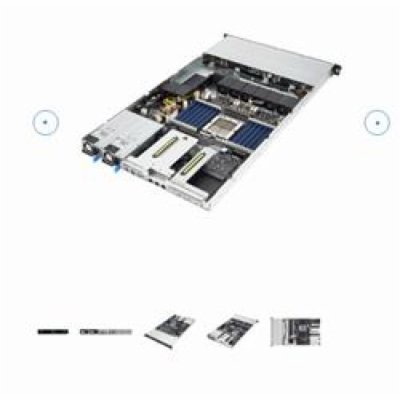

ASUS 1U RS501A-E12-RS4 1 xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW
ASUS 1U RS501A-E12-RS4 1 xSP5 (LGA 6096) 24xDDR5 4xSATA/NVME/OCP/2x1G LAN/1,6KW
67164 Kč
55507 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90SF03Y1-M000N0
Kód produktu: 25564465
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Processor / System Bus
1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)
Memory
24 x DIMM slots
with AMD EPYC™ 9005 series processors
DDR5 6400/5600 RDIMM/3DS RDIMM
Maximum 2,304GB
2DPC (1 of 2) up to 5200 with "6400 RDIMM", other 4800
2DPC (2 of 2, 1R+1R ) up to 4400, with "6400 RDIMM", other 4000
2DPC (2 of 2, 2R+2R ) up to 4000, with "6400 RDIMM", other 3600
with AMD EPYC™ 9004 series processors
DDR5 4800 RDIMM/ 3DS RDIMM
Maximum2,304GB
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600
* Refer to support page for more information
Expansion Slots
Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)
Storage
Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
Front bays:
4 x 3.5"/2.5” Hot-swap Storage Bays
4 x NVMe/SATA/SAS
*MCIO CABLE is required to support
NVMe hard drives
*SAS support only from optional SAS
HBA/RAID card
2 x M.2 connectors
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
Graphic
Up to 2 single-slot GPU cards
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/GPU
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
Switch/LED
Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear :
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Dimensions
842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"
Form Factor
1U
Weight
(approximate)
Net Weight: 13.15 kg
Gross Weight: 18.15 kg
Power Supply
1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W 80 PLUS Platinum
Power Supply
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations
Optional Items
Rail Kit:
Tool-less Friction Rail Kit
1.2m Half Extension Ball bearing Type Rail Kit
1m Half Extension Ball bearing Type Rail Kit
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
1U Front Bezel
Note
Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
