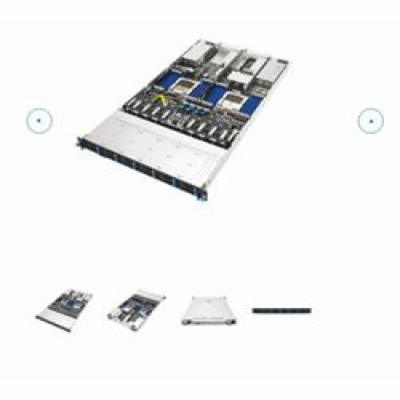

ASUS 1U RS700A-E13-RS12U 2 xSP5 (LGA 6096P) 24xDDR5/ 12x(4-8 SAS/Sata // 12xNvme Opti. ) /OCP/1xLAN/2KW
ASUS 1U RS700A-E13-RS12U 2 xSP5 (LGA 6096P) 24xDDR5/ 12x(4-8 SAS/Sata // 12xNvme Opti. ) /OCP/1xLAN/2KW
104778 Kč
86593 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90SF0451-M000M0
Kód produktu: 25703042
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Processor / System Bus
2 x Socket SP5 (LGA 6096P)
AMD EPYC™ 9005 processors (Up to TDP 400W)
*TDP support by configuration.
Generation
E13
Memory
Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Total Maximum up to 3072GB
Memory Type :
DDR5 6400/5600 RDIMM/ 3DS RDIMM
*Speed support up to 6000MT/s
Memory Size :
128GB, 96GB, 64GB, 32GB RDIMM
128GB, 96GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
Expansion Slots
Total 4 expansion slots
2 x PCIE Gen5 x16 (FHHL)
2 x OCP3.0 Gen5 x16 (SFF)
Drive Bays
12 x 2.5"/3.5” hot-swap drive bays
-Config 1: 12NVMe
-Config 2: 4SATA/SAS* + 8NVME/SATA/SAS*
*HBA/ RAID card is required to support SAS hard drives
System Fan
8
Networking
1 x Management Port
Graphic
Aspeed AST2600 64MB
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x Mini-DP port
1 x RJ-45 Management LAN port
1 x Debug port
Switch/LED
Front Switch/LED:
1 x Power Switch w/ LED
1 x Reset Switch
1 x Location Switch w/ LED
1 x HDD Access LED
1 x Message LED
Rear Switch/LED:
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
On-Board ASMB12-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance
BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions
449 (W) x 43.85 (H) x 800 (D) mm
17.68 (W) x 1.73 (H) x 31.5 (D) inches
Form Factor
1U
Weight
Net Weight : 13.81KG
Gross Weight : 16.71KG
Power Supply
1+1 Redundant 2000W 80 PLUS Titanium/Platinum PSU
Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
Security:
Dual BMC Module (default)
Accessory:
1U Front Bezel
1U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
Note
*SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
2 x 1U EVAC Heatsink
