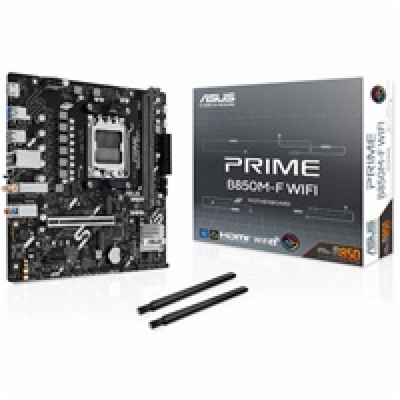

ASUS MB Sc AM5 PRIME B850M-F WIFI, AMD B850, 2x DDR5, WiFi, 1xHDMI, mATX
ASUS MB Sc AM5 PRIME B850M-F WIFI, AMD B850, 2x DDR5, WiFi, 1xHDMI, mATX
3564 Kč
2945 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90MB1N80-M0EAY0
Kód produktu: 26013233
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Popis produktu
ASUS PRIME B850M-F WIFI Based on the AMD B850 chipset, the ASUS PRIME B850M-F WIFI motherboard is designed to accommodate AMD Ryzen 7000/8000/9000 processors on socket AM5. It is ideal for assembling a gaming or multimedia configuration. More affordable than the X870 chipset, it supports DDR5, PCI-Express 5.0 graphics cards and PCIe 5.0 M.2 SSDs. CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD B850 Chipset Memory 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMI™ port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. - For compatibility details, visit https://www.asus.com/support/download-center/. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4) M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (PCIe 4.0 x4) M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4/x2)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU type. RAID Support AMD RAIDXpert2 Technology* Ryzen™ 9000 Series: RAID 0/1/5/10 Ryzen™ 8000 Series: RAID 0/1 Ryzen™ 7000 Series: RAID 0/1/10 * Specifications vary by CPU types. Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz bands Bluetooth v5.3* * Version may vary depending on module. USB Rear USB (Total 6 ports) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (USB Type-C) 1 x USB 5Gbps header (2 additional ports) 2 x USB 2.0 headers (4 additional ports) * USB-C power delivery: max 5V/3A. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Jack detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-bit/192 kHz playback Audio Features - Audio shielding - Premium capacitors - Dedicated audio PCB layers * HD audio front panel module required for 7.1 output. Back Panel I/O Ports 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan & Cooling: 1 x CPU Fan header 2 x Chassis Fan headers Power: 1 x 24-pin Main Power 1 x 8-pin CPU Power Storage: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 5Gbps connector (Type-C) 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) Misc: 3 x ARGB Gen 2 headers 1 x Clear CMOS 1 x COM port 1 x Front Panel Audio (F_AUDIO) 1 x S/PDIF Out 1 x SPI TPM (14-1 pin) 1 x Front Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Aura Sync - ARGB Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub ASUS CPU-Z ASUS GlideX TurboV Core Adobe Creative Cloud (Trial)** Norton 360 Deluxe (60-day Trial) WinRAR (40-day Trial) UEFI BIOS: AI Cache Boost ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey * More info at www.asus.com/support ** Region restrictions apply. BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables: 2 x SATA 6Gb/s cables Misc: 1 x ASUS Wi-Fi antenna 1 x I/O shield 1 x M.2 anchor package Documentation: 1 x Quick start guide Operating System Windows 11, Windows 10 64-bit Form Factor micro-ATX 8.9 in x 8.75 in (22.6 cm x 22.2 cm)Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany. Kontaktovat výrobce můžete na obchod@mader.cz, nebo na adrese: MADER s.r.o., 1 Máje 14, Liberec.
