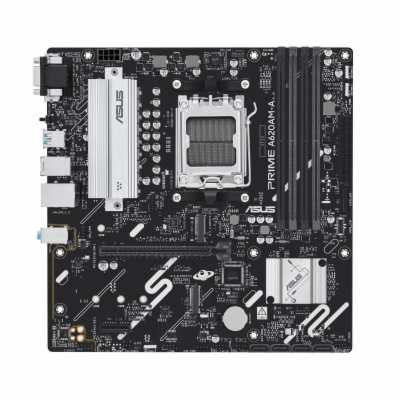

ASUS MB Sc AM5 PRIME A620AM-A-CSM, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX
ASUS MB Sc AM5 PRIME A620AM-A-CSM, 4xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX
2523 Kč
2085 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90MB1MY0-M0EAYC
Kód produktu: 25902187
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Popis produktu
ASUS PRIME A620AM-A-CSM ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD A620A Chipset Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Graphics 1 x DisplayPort 1 x VGA port 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD A620A Chipset 1 x PCIe 3.0 x1 slot Specifications vary by CPU types. To ensure compatibility, refer to https://www.asus.com/support/download-center/ for supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD A620A Chipset 4 x SATA 6Gb/s ports Specifications vary by CPU types. RAID Support AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types. Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard USB Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A Audio Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 keyboard/mouse combo port Internal I/O Connectors Fan and Cooling Related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header Special Features ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage protection SafeSlot Core Stainless-steel back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Aura Sync Addressable RGB Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync FAN Xpert 2+ ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode For more software features, visit www.asus.com/support for additional information. Remote Management Features IT Management software supported ASUS Control Center Express(ACCE) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O shield 1 x Screw package for M.2 SSD Documentation: 1 x ACC Express activation key card 1 x Quick start guide Operating System Windows 11, Windows 10 64-bit Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany. Kontaktovat výrobce můžete na obchod@mader.cz, nebo na adrese: MADER s.r.o., 1 Máje 14, Liberec.
