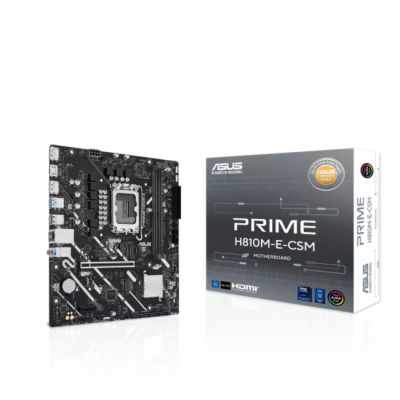

ASUS MB Sc LGA1851 PRIME H810M-E-CSM, Intel H810, 2xDDR5, 2xDP, 1xHDMI, mATX
ASUS MB Sc LGA1851 PRIME H810M-E-CSM, Intel H810, 2xDDR5, 2xDP, 1xHDMI, mATX
2268 Kč
1874 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90MB1N20-M0EAYC
Kód produktu: 25973206
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Popis produktu
ASUS PRIME H810M-E-CSM The ASUS PRIME H810M-E-CSM motherboard is designed to deliver stable performance and essential features for everyday computing. Built for Intel Core™ processors on the LGA1851 socket, it offers efficient power delivery, comprehensive connectivity, and proven ASUS reliability — making it an ideal choice for business, home, or office PCs. CPU Support Intel Core™ Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** *Refer to https://www.asus.com/support/download-center/ for CPU support list.* **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel H810 Chipset Memory 2 x DIMM slots, max. 128GB, DDR5 — Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.* **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 2 x DisplayPort** 1 x HDMI™ port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.* **Supports max. 4K@60Hz as specified in DisplayPort 1.4.* ***Supports 4K@60Hz as specified in HDMI 2.1.* ****VGA resolution support depends on processors or graphic cards resolution. Expansion Slots Intel Core™ Ultra Processors (Series 2): 1 x PCIe 4.0 x16 slot Intel H810 Chipset: 1 x PCIe 4.0 x1 slot *To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.* Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard USB Rear USB (Total 6 ports): 2 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports Front USB (Total 5 ports): 1 x USB 5Gbps connector (Type-C), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) *USB Type-C power delivery output: max. 5V/3A.* **USB_E1, USB_E2, and USB_E3 ports share bandwidth.** Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.* Back Panel I/O Ports 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 2 x DisplayPort 1 x HDMI™ 1 x Realtek 1Gb Ethernet 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s USB: 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) Miscellaneous: 3 x ARGB Gen2 headers, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM, 1 x F_AUDIO, 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x Front Panel (10-1 pin) Special Features ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O ASUS Q-Design: Q-Dashboard, Q-LED Core, Q-Slot ASUS Thermal Solution: Aluminum heatsink design ASUS EZ DIY: Dual DIMM clips Aura Sync: Addressable RGB Gen 2 headers Software Features ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, ASUS CPU-Z Adobe Creative Cloud (Free Trial)**, Norton 360 Deluxe (60 Days), WinRAR (40 Days) UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS MyHotkey *For more software features, please visit the ASUS support site.* **For regional restrictions, see: https://www.asus.com/content/asus-offers-adobe-creative-cloud/.** BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables: 2 x SATA 6Gb/s Miscellaneous: 1 x I/O shield, 1 x M.2 anchor package Documentation: 1 x Quick start guide Operating System Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany. Kontaktovat výrobce můžete na obchod@mader.cz, nebo na adrese: MADER s.r.o., 1 Máje 14, Liberec.
