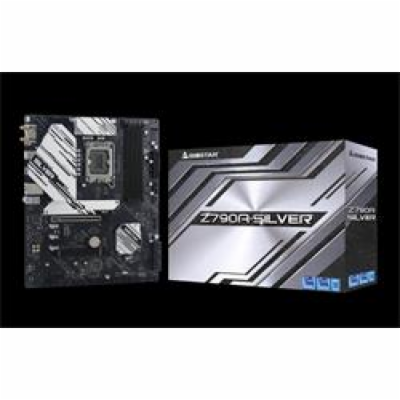

BIOSTAR MB Z790 Socket LGA1700, DDR5, HDMI, DP, 6x SATA III, M.2, ATX
BIOSTAR MB Z790 Socket LGA1700, DDR5, HDMI, DP, 6x SATA III, M.2, ATX
6452 Kč
5332 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: ZSZ790ASILVER
Kód produktu: 23808402
Výrobce: Biostar
Záruka: 24 měsíců
Popis produktu
Supports 12 th / 13 th Generation Intel Core™ Processor
Intel Z790 single chip architecture
Supports 4-DIMM DDR5 up to 128 GB Memory
Supports PCIe 5.0
Supports PCIe M.2 4.0 (64Gb/s)
Supports Intel Optane Technology
Supports HDMI 2.1
Supports 2.5 GbE LAN
Supports USB 3.2 Gen2 Type C
Support WiFi 6 & 6E module (No WiFi card included)
---------------------------------------------------------------------------------------------------------------------------------------------
Chipset
Intel Z790
CPU SUPPORT
Support for 12th / 13th / 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR5 - 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC) / 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory
Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
Support Intel® Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO
Supports DX12
Supports HDCP
STORAGE
Total supports 3 x M.2 socket and 6x SATA III (6Gb/s) ports
Intel 12th/13th/14th Processors
1 x M.2 (M Key) Socket (M2M_CPU)
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
Intel Z790 Chipset
1 x M.2 (M Key) Socket (M2M_SB1):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
1 x M.2 (M Key) Socket (M2_SB2):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s) SSD
6 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
* When using PCI-E module on M.2 Socket (M2M_SB1), the PCI-E slot (PCIEx16_2) will be disabled.
* Specifications vary by CPU types
LAN
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
ALC1220
7.1 Channels, High Definition Audio, Hi-Fi
USB
2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal header)
5 x USB 3.2 (Gen2) port (5 on rear I/Os)
2 x USB 3.2 (Gen1) port (2 via internal header)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT
INTEL 12th/13th/14th Processors
1 x PCIe 5.0 x16 Slot (x16 mode or x8/x8 mode)
1 x PCIe 4.0 x16 Slot (x4 mode)
INTEL Z790 Chipset
2 x PCIe 3.0 x1 Slot
* Specifications vary by CPU types
REAR I/O
2 x WIFI Antenna Port
1 x HDMI Port (HDMI2.1)
1 x DP Port (DP1.2)
1 x USB 3.2 (Gen2) Type-C Port
5 x USB 3.2 (Gen2) Port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack
1 x SMART BIOS UPDATE Button
1 x SMART BIOS USB Port
INTERNAL I/O
6x SATA III Connector (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type C Header.
1 x 4-Pin Power Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
4 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided
H/W MONITORING
CPU / System Temperature Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION
ATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L )
OS SUPPORT
Supports Windows Windows 10(64bit) / Windows 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
Caution!! The specification and pictures are subject to change without notice!
