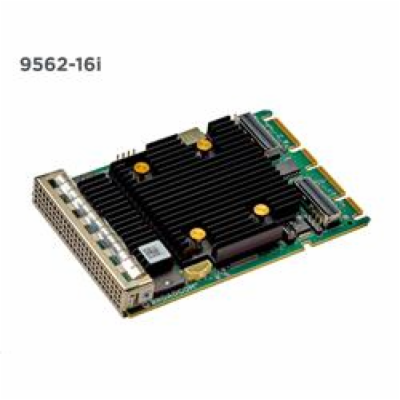

Broadcom MegaRAID 9562-16i, 8GB, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, RAID 0-60, OCP 3.0 (PCIe 4.0 x8), SAS3916 ROC
Broadcom MegaRAID 9562-16i, 8GB, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, RAID 0-60, OCP 3.0 (PCIe 4.0 x8), SAS3916 ROC
40894 Kč
33797 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 05-50137-00
Kód produktu: 26364095
Výrobce: Broadcom
Váha: 0,36 kg
Záruka: 36 měsíců
Popis produktu
PCIe Gen 4.0 Tri-Mode MegaRAID OCP 3.0 SFF adapter provides for more flexibility when integrating storage into the server
The 16-port OCP 3.0 SFF Tri-Mode 9562-16i NVMe/SAS/SATA RAID adapter enables more flexibility when integrating storage into the server.
The OCP RAID adapter enables the operation of NVMe, SAS or SATA devices in a single drive bay. By using an OCP slot for storage, users can free up a standard PCIe adapter slot for other uses.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
SFF-9402 compliant connector pinout
Product
Manufacturer Part #
What's in the Box
MegaRAID 9562-16i
05-50137-00
MegaRAID 9562-16i adapter
Specification
Value
Lifecycle
Active
Distributor Inventory
No
Brackets
Internal Lock
Cache Memory
8GB
Cache Protection
CacheVault CVPM05
Connectors
2x8 SFF-8654 (Vertical)
Data Transfer Rates
12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported
SAS/SATA: 1024, NVMe: 32
Generation
12 Gb/s
Host Bus Type
x8 lane PCI Express 4.0
I/O Processor / SAS Controller
SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
Internal Ports
16
Management Software
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF
>3,000,000 hours at 40° C
OCP Thermal Tier
Tier 5
Operating Temperature°C
0°C to 55°C
OS
Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions
115.00 (+/-0.13) mm x 76.00 (+/-0.13) mm
RAID Levels
0, 1, 10, 5, 50, 6, 60
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power
13W
Warranty
3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
