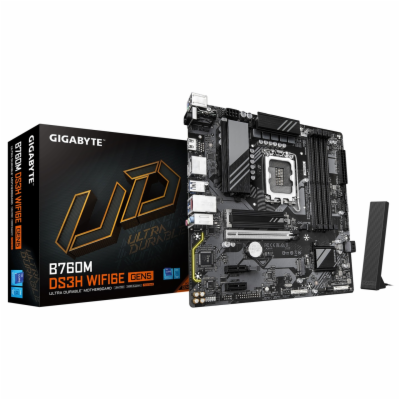

GIGABYTE B760M DS3H WIFI6E GEN5/LGA 1700/mATX
GIGABYTE B760M DS3H WIFI6E GEN5/LGA 1700/mATX
2884 Kč
2383 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: B760M DS3H WF6E GEN5
Kód produktu: 25814900
Výrobce: GIGABYTE
Záruka: 36 měsíců
Popis produktu
Popis produktu
GIGABYTE B760M DS3H WIFI6E GEN5 PCIe Gen5 Performance : Perfect Sync to Win Supports Intel Core™ 14th/ 13th /12th processors WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal. EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Extended Connectivity : Rear USB-C 10Gb/s, DP, HDMI Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors (Go to GIGABYTE s website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel B760 Express Chipset Memory 14th and 13th Generation Intel Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, PentiumGold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE s website for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending onCPU support.) Support for up to triple-display at the same time) Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel I/O Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton Internet Security (OEM version) Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cmPřes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
