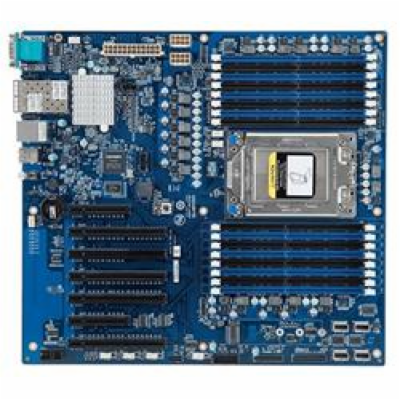

Gigabyte MB server MZ31-AR0, AMD EPYC 7000 family, RDIMM/LRDIMM DDR4, 16 x DIMMs, 2xSFP+ 10Gb/s LAN, 7xPCIe 3.0
Gigabyte MB server MZ31-AR0, AMD EPYC 7000 family, RDIMM/LRDIMM DDR4, 16 x DIMMs, 2xSFP+ 10Gb/s LAN, 7xPCIe 3.0
18957 Kč
15667 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MZ31-AR0
Kód produktu: 12603007
Výrobce: GIGABYTE
Záruka: 36 měsíců
Popis produktu
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x dedicated management port
4 x SlimSAS (for 16 x SATA 6Gb/s) ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
Aspeed® AST2500 remote management controller
Form Factor
E-ATX
305W x 330D (mm)
CPU
AMD EPYC™ 7001 series processor family
Single processor, 14nm
Up to 32-core, 64 threads
TDP up to 200W
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666(1DPC)/2400/2133* MHz
- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
LAN
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x SlimSAS, total 16 x SATA III 6Gb/s ports
RAID
-
Expansion Slots
Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Board Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MZ31-AR0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS to SATAIII 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimension: 729 x 415 x 432 mm
Quantity: 10 x single box with one carton
Bulk Packaging Content
10 x MZ31-AR0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MZ31AR0MR-00-1*
Bulk: 9MZ31AR0NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MZ31A0-00R
- SlimSAS to SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Quick start guide: 25ME0-MZ3000-Q0R
- Fan-sink: 12SF2-01A067-00R ( in option)
