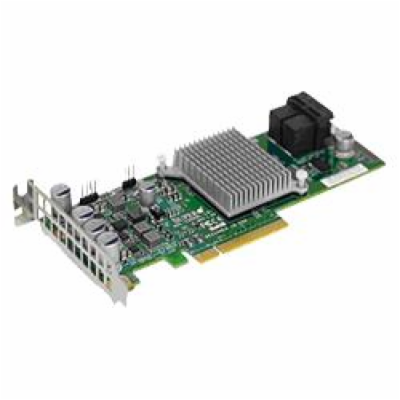

SUPERMICRO 12Gb/s SAS controller, Internal RAID Adapter LSI SAS 3008, 8-port (internal), RAID 0,1,10
SUPERMICRO 12Gb/s SAS controller, Internal RAID Adapter LSI SAS 3008, 8-port (internal), RAID 0,1,10
6910 Kč
5711 Kč bez DPH
Dostupnost: Nedostupné 🛈
Part no.: AOC-S3008L-L8i
Kód produktu: 9625110
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID AOC-S3008L-L8i feature 8 internal SAS connectors for high-performance storage connectivity.
Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapters delivers an intelligent and robust RAID solution.
The AOC-S3008L-L8i supports 63 devices.
This product is only available through Supermicro.
Compatible with Supermicro motherboards only.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
Broadcom 3008 SAS controller
8-port (internal), 12Gb/s per port
Supports 63 devices
Supports MegaRAID Storage Manager Software
Automatically negotiates PCI-E (1.x, 2.x AND 3.X) link widths
Power management support
Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS2 expanders
OS Support : Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Processor at 1.2 GHZ
Supports RAID 0, 1, 1E and 10
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 0° to 55°C
Dimensions and Weight
H x L 2.7" x 6.6"
Weight 0.5 lbs
Tested Motherboards and Servers
Motherboards
• X9DRH-7TF
• X9DR3-LN4F+
• X9DRT-PIBQ
• X9DRT-P
Downloads
User s Guide [ Download ]
Driver [ Download ]
Firmware [ Download ]
Tested Hard Drives
Tested HDD/SSD [ Tested HDD List ]
Popis produktu
Add-on CardSupermicro 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID AOC-S3008L-L8i feature 8 internal SAS connectors for high-performance storage connectivity.
Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapters delivers an intelligent and robust RAID solution.
The AOC-S3008L-L8i supports 63 devices.
This product is only available through Supermicro.
Compatible with Supermicro motherboards only.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
Broadcom 3008 SAS controller
8-port (internal), 12Gb/s per port
Supports 63 devices
Supports MegaRAID Storage Manager Software
Automatically negotiates PCI-E (1.x, 2.x AND 3.X) link widths
Power management support
Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Zoning capability w/ SAS2 expanders
OS Support : Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
Processor at 1.2 GHZ
Supports RAID 0, 1, 1E and 10
Uses 2 MiniSAS HD (SFF-8643) connectors
Operating Temp: 0° to 55°C
Dimensions and Weight
H x L 2.7" x 6.6"
Weight 0.5 lbs
Tested Motherboards and Servers
Motherboards
• X9DRH-7TF
• X9DR3-LN4F+
• X9DRT-PIBQ
• X9DRT-P
Downloads
User s Guide [ Download ]
Driver [ Download ]
Firmware [ Download ]
Tested Hard Drives
Tested HDD/SSD [ Tested HDD List ]
