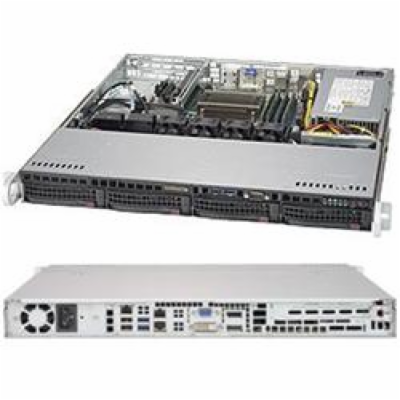

SUPERMICRO 1U server 1x LGA1151, iQ170 (i7), 4x DDR4, 4x 3.5" HS SATA3, 350W, IPMI
SUPERMICRO 1U server 1x LGA1151, iQ170 (i7), 4x DDR4, 4x 3.5" HS SATA3, 350W, IPMI
21099 Kč
17437 Kč bez DPH
Dostupnost: Nedostupné 🛈
Part no.: SYS-5019S-M2
Kód produktu: 9690495
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
SYS-5019S-M2 SuperServer 5019S-M2 (Black)
Motherboard
Super X11SSZ-F
Processor/Cache
CPU Single Socket H4 (LGA 1151) supports:
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen Core™ i7/i5/i3,
Intel® Pentium®,
Intel® Celeron® processors
CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity 4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type 2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
On-Board Devices
Chipset Intel® C236 chipset
SATA 4x SATA3 (6Gbps) via Intel® C236 controller
RAID 0, 1, 5, 10 support
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC 888S High Definition Audio
Video ASPEED AST2400 BMC
Input / Output
SATA 4 SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 4 USB 3.0 ports (2 rear + 2 headers)
9 USB 2.0 ports (2 rear + 6 headers + 1 Type A)
Audio Front panel header
Video/Display 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port / Header 2 COM ports (1 front, 1 header)
PC Health Monitoring
Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN Total of 6 fan headers supporting up to 6 fans
4 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED System Information LED
Suspend static indicator LED
UID/Remote UID
Other Features Chassis intrusion detection
Chassis intrusion header
RoHS, Halogen Free
Chassis
Form Factor 1U Rackmount
Model CSE-813MFTQC-350CB
Dimensions and Weight
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 19.85" (503mm)
Package 8.5" (H) x 24" (W) x 29.7" (D)
Weight Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)
Available Colors Black
Front Panel
Buttons Power On/Off button
System Reset button
LEDs Power LED
Hard drive activity LED
2 Network activity LEDs
System Information LED
Expansion Slots
PCI-Express 1 PCI-E 3.0 x16 slot
Drive Bays
Hot-swap 4 Hot-swap 3.5" SATA3 drive bays
Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)
System Cooling
Fans 4x 4cm internal fans
Power Supply
350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V Max.: 15 Amp
Min.: 0.2 Amp
+5V standby Max.: 3 Amp
Min.: 0 Amp
+12V Max.: 29 Amp
Min.: 0.5 Amp
-12V Max.: 0.2 Amp
Min.: 0 Amp
+3.3V Max.: 12 Amp
Min.: 0.2 Amp
Certification Platinum Level Certified Platinum Level Certified
[ Test Report ]
System BIOS
BIOS Type 8MB SPI Flash EEPROM with AMI BIOS
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
