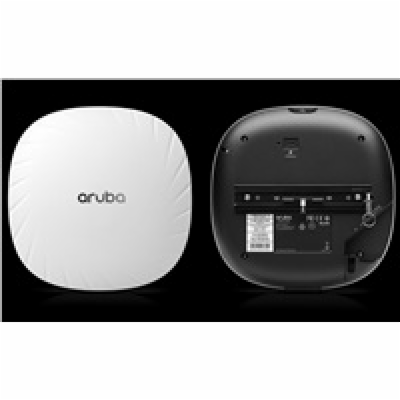

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A
6402 Kč
5291 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: Q9H62AR
Kód produktu: 23982947
Výrobce: Hewlett Packard Enterprise
Záruka: 99 měsíců
Popis produktu
General
Product Number: Q9H62A
Differentiator: Available everywhere except US, Israel, Japan, and Egypt
Certifications
UL2043 plenum rating
Bluetooth SIG
Wi-Fi Alliance:
Wi-Fi CERTIFIED: a, b, g, n, ac, ax
WPA, WPA2, WPA3 (Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE))
WMM, WMM-PS, Wi-Fi Agile Multiband
Wi-Fi CERTIFIED Location™
Regulatory
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN 60601-1-2
Railway Certifications (AP-515 Only)
EN 50155:2017 - Railway Applications
EN 50121-1:2017 - Railway EMC
EN 50121-3-2 - Railway EMC
EN 50121-4:2016 - Railway Immunity
IEC 61373 ed2:2008 - Railway Shock and Vibration
Wireless & Antennas
Standard: Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi Antenna: Four integrated dual-band downtilt omni-directional antennas
4x4 MIMO
2.4 GHz peak gain: 4.2 dBi
5 GHz peak gain: 7.5 dBi
Ports
E0: HPE Smart Rate (RJ-45), max 2.5 Gbps
E1: 10/100/1000BASE-T Ethernet (RJ-45)
USB 2.0 Host (Type A)
Serial console (proprietary, micro-B USB)
Mounting
Pre-installed mounting bracket. Compatible with optional mounting kits (see ordering guide).
Power Consumption
DC powered: Max 16.0W
PoE (802.3af, IPM enabled): 13.5W
PoE (802.3at/bt): 20.8W
Idle mode: 12.6W (PoE), 9.7W (DC)
Deep-sleep mode: 5.9W (PoE), 1.5W (DC)
Radio Coverage
Indoor dual radio:
5 GHz 802.11ax 4x4 MIMO
2.4 GHz 802.11ax 2x2 MIMO
Warranty
Limited lifetime warranty. See the warranty documentation for duration details.
Dimensions
Size: 46 x 200 x 200 mm
Popis produktu
HPE Aruba Networking AP-515 (RW)AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP Q9H62AGeneral
Product Number: Q9H62A
Differentiator: Available everywhere except US, Israel, Japan, and Egypt
Certifications
UL2043 plenum rating
Bluetooth SIG
Wi-Fi Alliance:
Wi-Fi CERTIFIED: a, b, g, n, ac, ax
WPA, WPA2, WPA3 (Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE))
WMM, WMM-PS, Wi-Fi Agile Multiband
Wi-Fi CERTIFIED Location™
Regulatory
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN 60601-1-2
Railway Certifications (AP-515 Only)
EN 50155:2017 - Railway Applications
EN 50121-1:2017 - Railway EMC
EN 50121-3-2 - Railway EMC
EN 50121-4:2016 - Railway Immunity
IEC 61373 ed2:2008 - Railway Shock and Vibration
Wireless & Antennas
Standard: Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi Antenna: Four integrated dual-band downtilt omni-directional antennas
4x4 MIMO
2.4 GHz peak gain: 4.2 dBi
5 GHz peak gain: 7.5 dBi
Ports
E0: HPE Smart Rate (RJ-45), max 2.5 Gbps
E1: 10/100/1000BASE-T Ethernet (RJ-45)
USB 2.0 Host (Type A)
Serial console (proprietary, micro-B USB)
Mounting
Pre-installed mounting bracket. Compatible with optional mounting kits (see ordering guide).
Power Consumption
DC powered: Max 16.0W
PoE (802.3af, IPM enabled): 13.5W
PoE (802.3at/bt): 20.8W
Idle mode: 12.6W (PoE), 9.7W (DC)
Deep-sleep mode: 5.9W (PoE), 1.5W (DC)
Radio Coverage
Indoor dual radio:
5 GHz 802.11ax 4x4 MIMO
2.4 GHz 802.11ax 2x2 MIMO
Warranty
Limited lifetime warranty. See the warranty documentation for duration details.
Dimensions
Size: 46 x 200 x 200 mm
