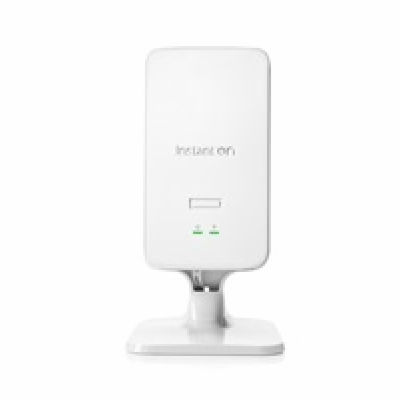

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
5030 Kč
4157 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: S1U76A
Kód produktu: 24768933
Výrobce: Hewlett Packard Enterprise
Záruka: 24 měsíců
Popis produktu
HPE Networking Instant On AP22D Specifications
Technical Specifications
Product Information
Product Name: HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
Product Number: S1U76A
Differentiator: For use in countries/regions where no specific regulatory domain is required.
In the Box
HPE Networking Instant On Access Point
Quick Start Guide
Combined ceiling and wall rail mount clip
Ethernet cable
Desktop mount
Add PoE or DC power source (sold separately unless bundle SKU is purchased)
Certifications
Wi-Fi Alliance certified (WFA)
802.11ax (Wi-Fi 6)
WPA2, WPA3
Power and Input Voltage
PoE Input: 802.3bt (Class 6) full functionality or 802.3at (Class 4) limited functionality
DC Power: 48V
PoE In: 802.3at / 802.3bt
PoE Out: 2x 15W PoE (802.3af)
Wi-Fi Antenna
Type: Dual semi-directional 2x2 MIMO
Antenna Gain: 5.2 dBi (2.4GHz), 5.4 dBi (5GHz)
Max Transmit Power:
5GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4GHz: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Connectivity Standards
Ultra-fast 802.11ax
Ports
1x 2.5 GbE Base-T PoE (Class 4/6 uplink)
2x 1 GbE Base-T PoE (Class 3 downlink)
2x 1 GbE Base-T downlink
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot
Mounting Options
Gang wall box-mount kit
Desk-mount kit
Power Consumption
51W (PoE)
50W (DC)
Radio Coverage
Dual-radio 802.11ax 2x2 5GHz / 2.4GHz MIMO
Warranty
Instant On 2-year warranty includes:
24x7 phone support for the first 90 days
Chat support for the entire warranty period
Community support for the life of the product
Popis produktu
HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) S1U76AHPE Networking Instant On AP22D Specifications
Technical Specifications
Product Information
Product Name: HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
Product Number: S1U76A
Differentiator: For use in countries/regions where no specific regulatory domain is required.
In the Box
HPE Networking Instant On Access Point
Quick Start Guide
Combined ceiling and wall rail mount clip
Ethernet cable
Desktop mount
Add PoE or DC power source (sold separately unless bundle SKU is purchased)
Certifications
Wi-Fi Alliance certified (WFA)
802.11ax (Wi-Fi 6)
WPA2, WPA3
Power and Input Voltage
PoE Input: 802.3bt (Class 6) full functionality or 802.3at (Class 4) limited functionality
DC Power: 48V
PoE In: 802.3at / 802.3bt
PoE Out: 2x 15W PoE (802.3af)
Wi-Fi Antenna
Type: Dual semi-directional 2x2 MIMO
Antenna Gain: 5.2 dBi (2.4GHz), 5.4 dBi (5GHz)
Max Transmit Power:
5GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4GHz: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Connectivity Standards
Ultra-fast 802.11ax
Ports
1x 2.5 GbE Base-T PoE (Class 4/6 uplink)
2x 1 GbE Base-T PoE (Class 3 downlink)
2x 1 GbE Base-T downlink
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot
Mounting Options
Gang wall box-mount kit
Desk-mount kit
Power Consumption
51W (PoE)
50W (DC)
Radio Coverage
Dual-radio 802.11ax 2x2 5GHz / 2.4GHz MIMO
Warranty
Instant On 2-year warranty includes:
24x7 phone support for the first 90 days
Chat support for the entire warranty period
Community support for the life of the product
