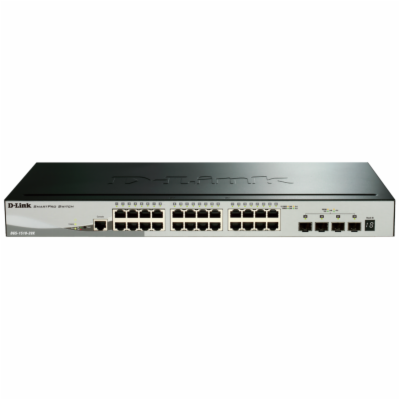

D-Link DGS-1510-28X Switch 24xGb+4xSFP+

Kalkulačka splátek CETELEM
9474 Kč s DPH

7830 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: DGS-1510-28X
Výrobce: D-LINK
Záruka: 10000 měsíců
D-Link DGS-1510-28X Switch 24xGb+4xSFP+
Produkt je zařazen:

Popis produktu:
D-Link DGS-1510-28X Switch 24xGb+4xSFP+

Informace k záruce:
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in


SPECIFICATIONS
GENERAL
Port Standards Functions
* IEEE 802.3 10BASE-T Ethernet
* IEEE 802.3u 100BASE-TX Fast Ethernet
* IEEE 802.3ab 1000BASE-T Gigabit Ethernet
* 802.3ae 10 GbE
* IEEE 802.3x Flow Control for Full-Duplex Mode
* Auto-negotiation

Number of Ports
* DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+

Network Cables
* UTP Cat. 5, Cat. 5e (100 m max.)
* EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex
* Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange
* Auto or configurable MDI/MDIX

PERFORMANCE
Switching Capacity
* DGS-1510-28X - 128 Gbps

Transmission Method
* Store-and-forward

MAC Address Table
* 16,000 entries per device

MAC Address Update
* Up to 512 static MAC entries
* Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
* DGS-1510-28X - 95.24 Mpps

Packet Buffer Memory
* DGS-1510-20/28/28X/28P - 1.5 MB per device

PHYSICAL ENVIRONMENT
AC Input
* 100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption
* DGS-1510-28X - 22.3 W

Standby Power Consumption
* DGS-1510-28X - 15.2 W

Smart Fan Quantity
* DGS-1510-20/28/28X - 1

Acoustics
* DGS-1510-28X - 42.7 dB(A)

Heat Dissipation
* DGS-1510-28X - 76.043BTU/hr

Operation Temperature
* -5 to 50 °C

Storage Temperature
* -20 to 70°C

Operation Humidity
* 0% to 95% non-condensing

Storage Humidity
* 0% to 95% non-condensing

Dimensions
* DGS-1510-28X - 440 x 210 x 44 mm

Weight
* DGS-1510-28X - 2.00 kg

Diagnostic LEDs
* Power/Stacking ID/Fan (per device)
* Link/Activity/Speed (per 10/100/1000 Mbps port)
* Link/Activity/Speed (per Gigabit SFP port)
* Link/Activity/Speed (per 10G SFP+ port)

Certifications
* CE
* FCC
* C-Tick
* VCCI
* BSMI
* CCC

Safety
* cUL
* CB

SOFTWARE FEATURES
Stackability
* Virtual Stacking Support: D-Link Single IP Management, Up to 32 devices per virtual stack, Up to 20G stacking bandwidth
* Physical Stacking: Supports Duplex Chain/Ring topology, Up to 40G stacking bandwidth full duplex, Up to 6 units per stack

L2 Features
* MAC Address Table: 16K
* Flow Control: 802.3x Flow Control, HOL Blocking Prevention
* Jumbo Frame up to 9000 Bytes
* IGMP Snooping: IGMP v1/v2 Snooping, IGMP v3 awareness, Supports 512 IGMP groups, Supports 128 static multicast addresses, IGMP per VLAN, Supports IGMP Snooping Querier, Host-based IGMP Snooping Fast Leave
* MLD Snooping: Supports MLD v1/v2 awareness, Supports 512 groups, Supports 128 Static Multicast Addresses, Per VLAN MLD Snooping, Host-Based MLD Fast Leave, * MLD Snooping Querier
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP
* Loopback Detection
* 802.3ad Link Aggregation: Max. 32 groups per device/8 ports per group
* Port Mirroring: Support 4 mirroring groups, One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
* Multicast Filtering: Forwards all unregistered groups, Filters all unregistered groups
* LLDP, LLDP-MED

VLAN
* 802.1Q Tagged VLAN
* 4K VLAN Groups
* Configurable VID: 0~4094
* Asymmetric VLAN
* Auto Voice VLAN
* Auto Surveillance VLAN

Quality of Service (QoS)
* 802.1p Quality of Service
* Queue Handling: Strict, Weighted Round Robin (WRR)
* 8 queues per port
* Bandwidth Control: Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 64 Kb/s)
* CoS based on: 802.1p priority, VLAN, MAC address, Ether type, IP address, DSCP, Protocol type, TCP/UDP port number, DSCP of IPv6 Traffic Class, IPv6 flow label

L3 Features
* ARP: 256 Static ARP, Supports Gratuitous ARP
* IPv6 Neighbour Discovery (ND)
* Default Routing
* Static Routing: 64 IPv4 Static Route Entries, 32 IPv6 Static Route Entries

Access Control List (ACL)
* ACL based on: 802.1p priority, VLAN, MAC address, Ether type, IP address, DSCP, Protocol type
TCP/UDP port number, DSCP of IPv6 Traffic Class, IPv6 flow label
* ACL Actions: Permit, Deny
* Max. 256 access list
* Max. 768 rules
* Single or multiple ports (each rule)
* Time-based ACL
* ACL Statistics

Security
* Port Security: Supports up to 128 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control
* Dynamic ARP Inspection
* Static MAC
* D-Link Safeguard Engine
* DHCP Server Screening
* ARP Spoofing Prevention: Max. 64 entries
* SSH: Supports v02, Supports IPv4/IPv6
* SSL: Supports v1/v2/v3, Supports IPv4/IPv6
* Traffic Segmentation
* IP-MAC-Port Binding: DHCP snooping, IP Source Guard, Dynamic ARP inspection, DHCPv6 Guard, RA Guard, IPv6 Snooping, IPv6 source guard
* DoS Attack Prevention

AAA
* Compound Authentication
* 802.1X Port and MAC-based Authentication: Supports RADIUS and Local Server, Supports EAP, OTP, TLS, TTLS, PEAP
* Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment
* MAC-based Access Control (MAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment
* Japan Web-based Access Control (JWAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment

OAM
* Cable Diagnostics
* Factory Reset

Management
* CLI
* Telnet Server
* TFTP Client
* IPv6 Neighbor Discovery
* Configurable MDI/MDIX
* SNMP: Supports v1, v2c, v3, SNMP Trap
* System Log: Max. 10,000 log entries
* DHCP Client
* D-Link Network Assistant support
* SNTP
* ICMPv6
* IPv4/v6 Dual Stack
* DHCP Auto Configuration
* RMON v1

D-Link Green 3.0 Technology
* Power Saving by: Link Status, LED or Port Shutoff, System Hibernation mode,
