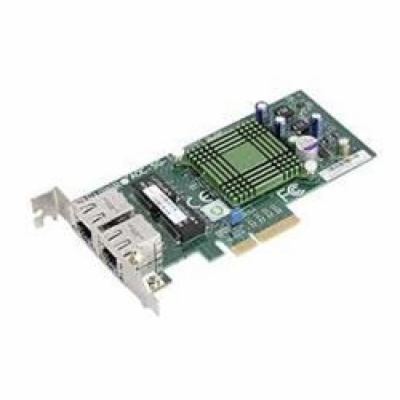

Supermicro AOC-SGP-i2 SUPERMICRO 2-port GbE Card Based on Intel i350 (Retail Pack)
Supermicro AOC-SGP-i2 SUPERMICRO 2-port GbE Card Based on Intel i350 (Retail Pack)
3024 Kč
2499 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: AOC-SGP-i2
Kód produktu: 15928534
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
•Mfr Part Number: AOC-SGP-I2
•Features:•Low-Profile Standard Form Factor in 3.9-inch in Length
•PCI Express 2.1 (2.5GT/s or 5GT/s)
•Two RJ-45 ports
•Intel I/O Acceleration Technology (I/O AT) supported
•Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
•Jumbo Frame Support of up to 9.5KB
•IEEE 802.3az - Energy Efficient Ethernet (EEE)
•Low Power Consumption (5W Typical)
•iSCSI Remote Boot support
•Flexible I/O Virtualization and Quality of Service (QoS)
•PXE Boot Support
•RoHS compliant 6/6
•General:•Intel i350 GbE controller
•Compact size low-profile standard form factor
•PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
•Dual RJ-45 connectors
•Intel PROSet Utility for Windows Device Manager
•Intel I/O Acceleration Technology (I/O AT)
•Power Consumption: about 4W
•Ethernet Features:•IEEE 802.3 auto-negotiation for speed, duplex, and flow control
•IEEE 802.3x and 802.3z compliant flow control support
•Automatic cross-over detection function (MDI/MDI-X)
•1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
•IEEE 1588 protocol and 802.1AS implementation
•Power Management and Efficiency:•IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
•DMA Coalescing reduces platform power consumption
•Active State Power Management (ASPM) support
•LAN disable function
•MAC Power Management controls
•Low Power Link Up - Link Speed Control
•Maximum Power Consumption: 4W
•Virtualization Features:•VM to VM Packet forwarding (Packet Loopback)
•Eight TX and
Popis produktu
Specifications•Mfr Part Number: AOC-SGP-I2
•Features:•Low-Profile Standard Form Factor in 3.9-inch in Length
•PCI Express 2.1 (2.5GT/s or 5GT/s)
•Two RJ-45 ports
•Intel I/O Acceleration Technology (I/O AT) supported
•Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
•Jumbo Frame Support of up to 9.5KB
•IEEE 802.3az - Energy Efficient Ethernet (EEE)
•Low Power Consumption (5W Typical)
•iSCSI Remote Boot support
•Flexible I/O Virtualization and Quality of Service (QoS)
•PXE Boot Support
•RoHS compliant 6/6
•General:•Intel i350 GbE controller
•Compact size low-profile standard form factor
•PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
•Dual RJ-45 connectors
•Intel PROSet Utility for Windows Device Manager
•Intel I/O Acceleration Technology (I/O AT)
•Power Consumption: about 4W
•Ethernet Features:•IEEE 802.3 auto-negotiation for speed, duplex, and flow control
•IEEE 802.3x and 802.3z compliant flow control support
•Automatic cross-over detection function (MDI/MDI-X)
•1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
•IEEE 1588 protocol and 802.1AS implementation
•Power Management and Efficiency:•IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
•DMA Coalescing reduces platform power consumption
•Active State Power Management (ASPM) support
•LAN disable function
•MAC Power Management controls
•Low Power Link Up - Link Speed Control
•Maximum Power Consumption: 4W
•Virtualization Features:•VM to VM Packet forwarding (Packet Loopback)
•Eight TX and
