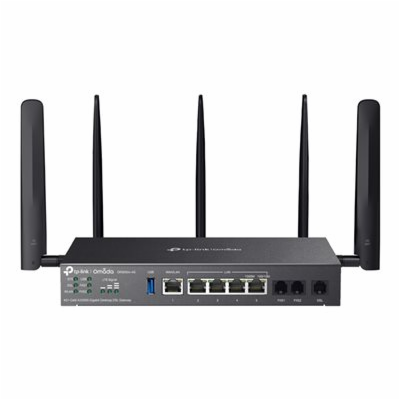

DR3650v-4G
DR3650v-4G
9868 Kč
8155 Kč bez DPH
Dostupnost: Skladem, dodání do 3 dnů 🛈
Part no.: DR3650V-4G
Kód produktu: 25745748
Výrobce: TP-Link
Váha: 1,833 kg
Záruka: 60 měsíců
Popis produktu
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
AX3000 Wi-Fi 6 s 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2 GHz. 4 GHz*1
4G+ Cat6 až 300Mb/s
3× Porty RJ11 (2× FXS, 1× DSL) & 5× Gigabitové porty RJ45 & 1× USB 3.0 Port
2× Nano SIM pro 4G/LTE Failover
VDSL2 35b: Podporuje 350Mb/s přístup DSL*2
Kompatibilita s VDSL2/ADSL2+/ADSL2/ADSL
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
Vyvažování zátěže napříč DSL, 4G a Ethernet WAN pro optimalizované připojení
Centralizovaná správa cloudu
Montáž na stůl/stěnu/stojan (zakoupit samostatně sadu pro montáž do stojanu D226)
Learn more about Omada Cloud SDN
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-router-dsl-router/dr3650v-4g
Technické specifikace
SECURITY
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering*5
• URL Filtering
• Web Security*5
ARP Inspection • Sending GARP Packets
• ARP Scanning*5
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface • 1× Gigabit WAN/LAN Port
• 4× Gigabit LAN Ports
• 1× DSL Port
• 2× FXS Ports
• 1× USB 3.0 (supports USB LTE dongle and USB Storage)
• Dual Nano SIM Slot (4G+ Cat6)
Button Reset Button
Power Supply 12V DC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)
Antenna • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable
antennas
• LTE: 2× 4.0dBi omnidirectional detachable antennas
Mounting Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately)
Max. Power Consumption Power adapter not included: 28.482 W (Full load + USB)
Power adapter included: 31.42 W (Full load + USB)
PERFORMANCE
GRE • Unencrypted: 541.8Mbp
• Encrypted: 289.2Mbps
WireGuard VPN 311.6Mbps
Concurrent Session 150
New Sessions /Second 3,8
NAT (Static IP) 937.2 Mbps / 936.1Mbps
NAT(DHCP) 945.8 Mbps / 940.6Mbps
NAT(PPPoE) 942.9 Mbps / 942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 569.9Mbps
• ESP-SHA256-AES256: 543.3Mbps
• ESP-SHA384-AES256: 549.0Mbps
• ESP-SHA512-AES256: 539.3Mbps
OpenVPN 129.3Mbps
L2TP VPN Throughput • Unencrypted: 909.4 Mbps
• Encrypted: 494.9Mbps
PPTP VPN Throughput • Unencrypted: 897.5 Mbps
• Encrypted: 190.8 Mbps
SSL VPN Throughput 126.7Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps
WIRELESS FEATURES
Advanced Features • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• MU-MIMO
• Load Balance
• Automatic Channel Selection Algorithm
• Airtime Fairness
• Rate Limit: Based on SSID/Client
• Transmit Power Control: Adjust transmit Power on dBm
• Multiple SSIDs: 16 in total (8 per radio)
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Advanced Routing • Static Routing
• Policy Routing
• RIP*5
• OSPF*5
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)*6
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)*6
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)*6
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN Yes
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*6
• Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)
• External Radius Sever
• External Portal Sever*6
• LDAP
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of Omada Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning Yes.Require the use of Omada Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, RoHS
Package Content • DR3650v-4G
• Power Adapter
• Ethernet Cable
• Phone Cable
• Rubber Feet,
• SIM Card Eject Pin
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
