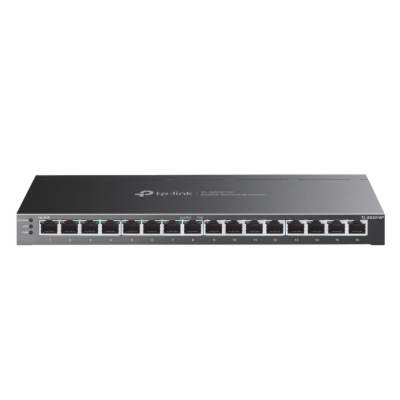

TP-Link TL-SG2016P TP-Link TL-SG2016P 16xGb(8xPoE+) 120W smart switch Omada SDN
TP-Link TL-SG2016P TP-Link TL-SG2016P 16xGb(8xPoE+) 120W smart switch Omada SDN
5295 Kč
4376 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: TL-SG2016P
Kód produktu: 24010362
Výrobce: TP-Link
Záruka: 36 měsíců
Popis produktu
HARDWARE FEATURES
Standards and Protocols:
*IEEE 802.3i
*IEEE 802.3ab
*IEEE 802.3ad
*IEEE 802.3af
*IEEE 802.3at
*IEEE 802.3x
*IEEE 802.1d
*IEEE 802.1s
*IEEE 802.1w
*IEEE 802.1q
*IEEE 802.1p
*IEEE 802.1x
Interface:
*16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
*Auto-Negotiation/Auto MDI/MDIX
Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
*Fanless
Power Supply
* External Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45)
* Standard: 802.3af/at compliant
* PoE Ports: 8 Ports
* Power Supply: 120 W*
Dimensions ( W x D x H )
*11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption
*146.5 W (110 V/60 Hz) (with 120 W PD connected)
Max Heat Dissipation
*499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
PERFORMANCE
Bandwidth/Backplane:
*16 Gbps
MAC Address Table:
*8k
Packet Buffer Memory:
*4.1 Mbit
Jumbo Frame:
*9 KB
SOFTWARE FEATURES
Quality of Service:
* 802.1p CoS/DSCP priority
* 8 priority queues
* Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
* Queue Weight Config
* Bandwidth Control
- Port/Flow-based Rating Limit
* Smoother Performance
* Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features:
* DHCP Relay
- DHCP VLAN Relay
* DHCP L2 Relay
* Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
* Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
* Loopback Detection
* Flow Control
- 802.3x Flow Control
* Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
* Device Link Detect Protocol (DLDP)
* 802.1ab LLDP/ LLDP-MED
L2 Multicast:
* 511 IPv4, IPv6 shared multicast groups
* IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
* Multicast VLAN Registration (MVR)
* Multicast Filtering
* MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
* Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support:
* IPv6 Dual IPv4/IPv6
* Multicast Listener Discovery (MLD) Snooping
* IPv6 neighbor discovery (ND)
* Path maximum transmission unit (MTU) discovery
* Internet Control Message Protocol (ICMP) version 6
* TCPv6/UDPv6
* IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN:
* VLAN Group
- Max. 4K VLAN Groups
* 802.1Q tag VLAN
* MAC VLAN: 12 Entries
* Protocol VLAN
* GVRP
* Voice VLAN
Access Control List:
* Support up to 230 entries
* Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
* Time-based ACL
* MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
* IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
* IPv6 ACL
* Combined ACL
* Rule Operation
- Permit/Deny
* Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
* ACL Rules Binding
- Port Binding
- VLAN Binding
* Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security:
* AAA
* 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
* IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
* IP Source Guard
- 253 Entries
- Source IP+Source MAC
* IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
* DoS Defend
* Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
* Port Isolation
* Secure web management through HTTPS with
SSLv3/TLS 1.2
* Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
* IP/Port/MAC-based access control
Advanced Features:
* Automatic Device Discovery
* Batch Configuration
* Batch Firmware Upgrading
* Intelligent Network Monitoring
* Abnormal Event Warnings
* Unified Configuration
* Reboot Schedule
MIBs:
* MIB II (RFC1213)
* Bridge MIB (RFC1493)
* P/Q-Bridge MIB (RFC2674)
* Radius Accounting Client MIB (RFC2620)
* Radius Authentication Client MIB (RFC2618)
* Remote Ping, Traceroute MIB (RFC2925)
* Support TP-Link private MIBs
* RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App:
Yes, through
* Omada Cloud-Based Controller
* OC300
* OC200
* Omada Software Controller
Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
Cloud Access:
Yes, through
* Omada Cloud-Based Controller
* OC300
* OC200
* Omada Software Controller
Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features:
* Web-based GUI
* Command Line Interface (CLI) through telnet
* SNMPv1/v2c/v3
* SNMP Trap/Inform
* RMON (1,2,3,9 groups)
* SDM Template
* DHCP/BOOTP Client
* Dual Image, Dual Configuration
* CPU Monitoring
* Cable Diagnostics
* EEE
* SNTP
* System Log
OTHERS
Certification:
CE, FCC, RoHS
Package Contents:
* TL-SG2016P
* Power Adapter
* Installation Guide
* Rubber Feet
System Requirements:
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
* Operating Temperature: 0–40 ? (32–104 ?);
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
