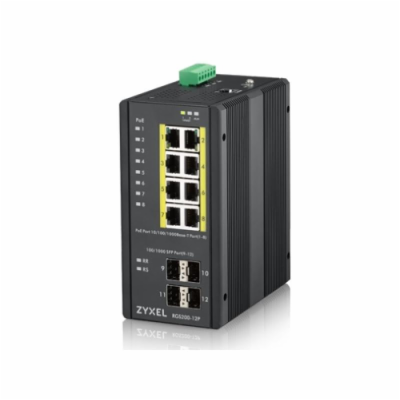

Zyxel RGS200-12P, 12-port Gigabit WebManaged switch: 8x GbE + 4x SFP, PoE (802.3at, 30W), Power budget 240W, DIN rail/Wa
Zyxel RGS200-12P, 12-port Gigabit WebManaged switch: 8x GbE + 4x SFP, PoE (802.3at, 30W), Power budget 240W, DIN rail/Wa
28226 Kč
23327 Kč bez DPH
Dostupnost: Nedostupné 🛈
Part no.: RGS200-12P-ZZ0101F
Kód produktu: 10431168
Výrobce: ZyXEL
Záruka: 10000 měsíců
Popis produktu
Ideal for outdoor switching
Equipped with fanless and IP30 standard metal mechanism, the Zyxel new Rugged switch RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications.
Quick failover for stable connectivity
The Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. In addition, it is also easy to manage RGS200-12P through an user-friendly web-based GUI.
High availability
Equipped with dual DC power inputs, the RGS200-12P is capable of high-availability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, reverse power protection feature ensure continuous uptime and reliable operation.
Easy extendibility and flexible installation
The RGS200-12P comes with eight(8) Gigabit PoE+ ports to accommodate power-hungry devices with ease and four(4) Gigabit SFP fiber uplinks which can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility. To adopt different deployments, the RGS200-12P can be installed on either a DIN rail or wall mount for efficient use of cabinet space.
RGS200-12P
12-port GbE Managed PoE Switch
Switch class
Layer 2
Port Density
Total port count
12
100/1000 Mbps PoE
8
Gigabit SFP
4
Performance
Switching capacity (Gbps)
24
Forwarding rate (Mpps)
17.86
Packet buffer (byte)
512 K
MAC address table
8 K
Jumbo frame (byte)
9 K
Power
Input
Dual power input 12V~58VDC
Max. power consumption (watt)
255
Total PoE power budget (watt)
240
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.): 77 x 127.3 x 154/3.03 x 5.01 x 6.06
Weight (kg/lb.): 1.45/3.2
Packing
Dimensions (WxDxH)(mm/in.): 133 x 192 x 238/5.24 x 7.56 x 9.37
Weight (kg/lb.): 1.9/4.19
Included accessories
Wall mount kit
DIN-rail mounting kit
Green Feature
Fanless
Yes
Environmental Specifications
Operating environment
Temperature : -40°C to 75°C/-40°F to 167°F
Temperature : 5% to 95% (non-condensing)
Storage environment
Temperature : -40°C to 85°C/-40°F to 185°F
Temperature : 5% to 90% (non-condensing)
MTBF (hr)
568,430
Heat dissipation (BTU/hr)
869.55
Acoustic noise (dBA)
0
Nejčastěji dohromady zakoupené zboží a příslušenství
Popis produktu
12-port Gigabit WebManaged switch: 8x GbE + 4x SFP, PoE (802.3at, 30W), Power budget 240W, DIN rail/Wall mount, IP30, operation temperature: from -40 to +75°C, dual power 12-58V DCIdeal for outdoor switching
Equipped with fanless and IP30 standard metal mechanism, the Zyxel new Rugged switch RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications.
Quick failover for stable connectivity
The Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. In addition, it is also easy to manage RGS200-12P through an user-friendly web-based GUI.
High availability
Equipped with dual DC power inputs, the RGS200-12P is capable of high-availability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, reverse power protection feature ensure continuous uptime and reliable operation.
Easy extendibility and flexible installation
The RGS200-12P comes with eight(8) Gigabit PoE+ ports to accommodate power-hungry devices with ease and four(4) Gigabit SFP fiber uplinks which can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility. To adopt different deployments, the RGS200-12P can be installed on either a DIN rail or wall mount for efficient use of cabinet space.
RGS200-12P
12-port GbE Managed PoE Switch
Switch class
Layer 2
Port Density
Total port count
12
100/1000 Mbps PoE
8
Gigabit SFP
4
Performance
Switching capacity (Gbps)
24
Forwarding rate (Mpps)
17.86
Packet buffer (byte)
512 K
MAC address table
8 K
Jumbo frame (byte)
9 K
Power
Input
Dual power input 12V~58VDC
Max. power consumption (watt)
255
Total PoE power budget (watt)
240
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.): 77 x 127.3 x 154/3.03 x 5.01 x 6.06
Weight (kg/lb.): 1.45/3.2
Packing
Dimensions (WxDxH)(mm/in.): 133 x 192 x 238/5.24 x 7.56 x 9.37
Weight (kg/lb.): 1.9/4.19
Included accessories
Wall mount kit
DIN-rail mounting kit
Green Feature
Fanless
Yes
Environmental Specifications
Operating environment
Temperature : -40°C to 75°C/-40°F to 167°F
Temperature : 5% to 95% (non-condensing)
Storage environment
Temperature : -40°C to 85°C/-40°F to 185°F
Temperature : 5% to 90% (non-condensing)
MTBF (hr)
568,430
Heat dissipation (BTU/hr)
869.55
Acoustic noise (dBA)
0
